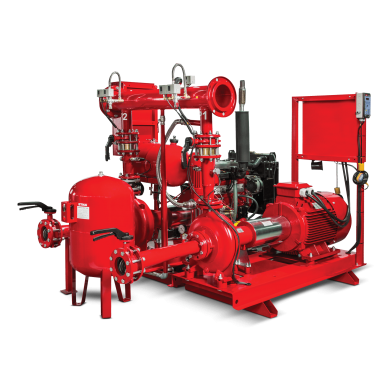

Fire Fighting Pumps

Easy-to-mount main and spare pumps are mounted on single base as modular. Maximizes safety with automatic test and remote monitoring and control features.
+ Maximum Flow: 3 x 450 m³/h
+ Maximum Pressure: 230 mwc
+ Motor Speed: 50 Hz, 2900 rpm
+ 1 diesel engine, 1 electric motor module options are available.
+ 1 diesel engine, 2 electric motor module options are available.

PUMP FEATURES :

Body : Back pull-out design

Pump Body Material : GGG25, GGG40 or AISI304

Shaft: AISI420 Stainless Steel

Sealing: Mechanical seal or soft packing (5 row)

Coupling Connection : Spacer coupling

Impeller : GGG25, AISI304 or bronze

TECHNICAL FEATURES :

Closed Valve Pressure : 125% of the nominal pressure

Maximum Load : The pressure when the flow rate increases to 140% should not be less than 70% of the nominal pressure

Back Up : In two-pump systems, each pump should ensure predefined flow rate and pressure alone. It can be selected in a manner to cover 50% of each pump's nominal flow rate on the systems with three pumps

Suction Line Water Flow Rate : Flow rate is 1.8m/s in positive suction and 1.5 m/s in negative suction
