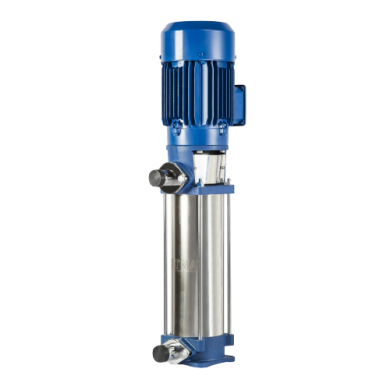

Vertical Multi-Stage Centrifugal Pumps :

High quality and efficient vertical multi-stage centrifugal pumps with compact construction. Highly preferred with its small footprint in booster systems and connection style as overlaying (inlet at the bottom and outlet at top) occupying space at floor.

Fields of Use :
• Pressurized water supply in residential and commercial buildings
• Garden irrigation systems
• Clean water transfer

PUMP FEATURES :

Body : GG25 Cast Iron

Impeller & Diffuser : Noryl

Pump Shaft: AISI 420 Stainless Steel

Sealing: Carbon / Ceramic / EPDM

Mechanical Seal : Spacer coupling

TECHNICAL FEATURES :

Maximum Flow : 60 m³/h

Maximum Pressure : 200 mwc

Inlet-Outlet Diameter : 1”& 3”

Pressure Class : PN16 & PN25

Max. Ambient Temperature : 40°C

Fluid Temperature : 0 - 40°C

Motor Speed : 2900 rpm

Protection Class : IP54

Insulation Class : F
