EA

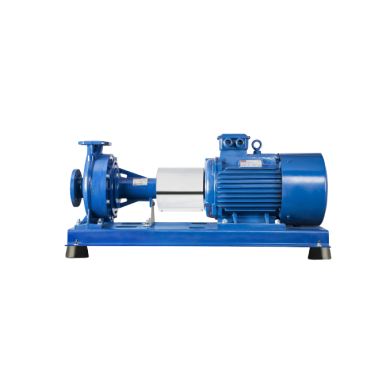

High efficiency horizontal single stage end suction pumps complying with DIN EN 733. :

End suction pumps with long service life and ease of maintenance;
• HVAC systems
• Heat recovery
• Fire pump systems
• Irrigation
• Greenhouse water supply
• Transfer of moderately aggressive liquids
• Water treatment
• Used in various OEM applications

Fluid Property :
• Clean, non-hard, non-viscose, chemically neutral water that is free of solid abrasive particles
• The maximum percentage of glycol that can be added to the circulating water is 50%. In case of using glycol-water mixed fluid, please contact our company at the product selection stage.

PUMP FEATURES :

Body : GG25 Cast Iron

Impeller  : GG25- Cast Iron ( ops. CuSn7 Bronze)

Pump ShaftAISI420 Stainless Steel

Mechanical Seal : Carbon / Silicone / Carbide

TECHNICAL FEATURES :

Maximum Flow : 480 m³/h

Max. Head 155 mwc

Engine Speed 2900 rpm (50 Hz), 1450 rpm (50 Hz)

Connection : DN 32 - DN 100

Power  : 0.25 kW - 160 kW

Max. Operating Pressure : 16 bar

Max. Ambient Temperature : 40°C

Temperature of Pumped Liquid : -10°C ÷ +120°C

Protection Class : IP55

Insulation Class : Class F










Types

The EA Types

EA 80-26

.
Details

EA 80-20

.
Details

EA 65-26

.
Details

EA 40-26

.
Details

EA 50-26

.
Details

EA 40-20

.
Details

EA 65-20

.
Details

EA 50-20

.
Details

EA 100-32

.
Details

EA 100-26

.
Details
