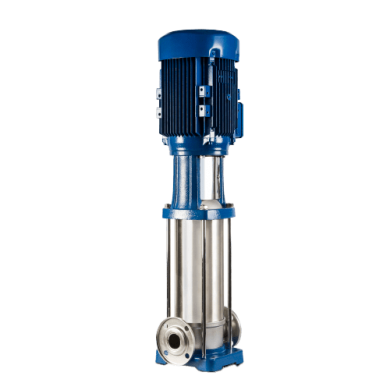

Completely Stainless Steel, Vertical Multi-Stage Centrifugal Pumps :

High quality pumps with compact construction and high efficiency with AISI304 grade stainless steel on all water contact surfaces. Features inline (on the same axis) inlet-outlet connections.

Fields of Use :
• Pressurized water supply in residential and commercial buildings
• Garden irrigation systems
• Agricultural irrigation systems.
• Industrial applications
• Water treatment systems
• Clean water transfer

PUMP FEATURES :

Body : AISI 304 Stainless Steel

Impeller & Diffuser : AISI 304 Stainless Steel

Pump Shaft: AISI 420 Stainless Steel

Mechanical Seal : Carbon / Ceramic / EPDM

TECHNICAL FEATURES :

Maximum Flow : 90 m³/h

Maximum Pressure : 310 mwc

Inlet-Outlet Diameter : DN80 & DN100

Pressure Class : PN32

Max. Ambient Temperature : 40°C

Motor Speed : 2900 rpm

Protection Class : IP55

Insulation Class : F
