AIR-OPERATED DOUBLE DIAPHRAGM PUMPS
Cubic 15
- Maximum flow rate: 17 l/min
- Suction / delivery connections: G 3/8″ f
DATA

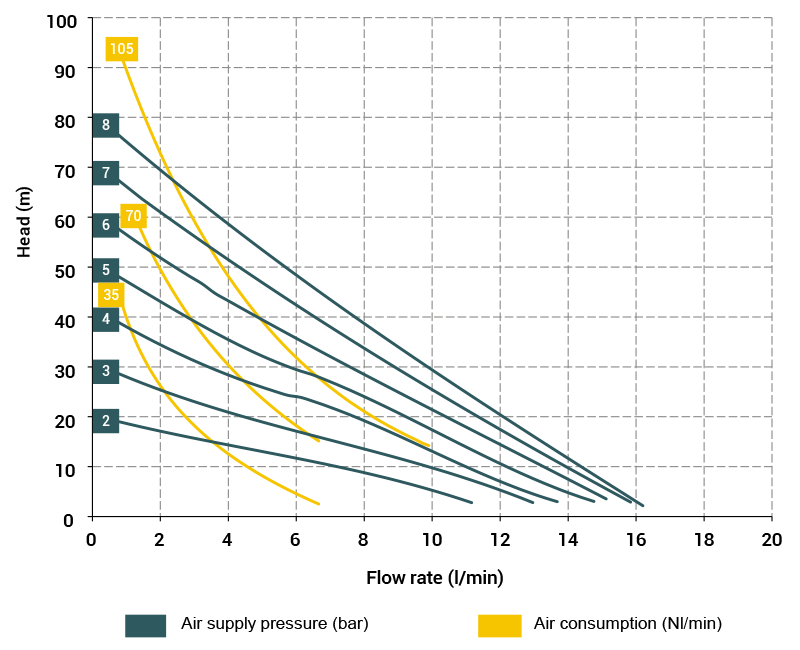

Performance
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials
** Attention: average values of the different materials configurations for ball and ball seat.
DATA
Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
| Suction/delivery connections | G 3/8″ f |
| Air fitting | G 3/8″ f |
| Max. flow rate * | 17 l/min |
| Max. supply air pressure | 8 bar |
| Max. head* | 80 m |
| Max negative suction head – dry-running ** | 3 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter Max suspended solids | 0,5 mm |
| Noise level ** | 65 dB |
| Volume per stroke | 10,3 cc |
PP PVDF
| Version | Weight | Min | Max |
| PP (with glass additive) | 1,35 kg | 3° C | 65° C |
| PP conductive (with carbon additive) | 1,35 kg | 3° C | 65° C |
| PVDF | 1,6 kg | 3° C | 95° C |
– POMc
– UHMWPE
| Maximum dimensions | Plastic |
| Height | 105 mm |
| Width | 201 mm |
| Depth | 105 mm |
