AIR-OPERATED DOUBLE DIAPHRAGM PUMPS
Boxer 502 / 522
- Maximum flow rate: 600 l/min
- Suction / delivery connections: G 2″ f o DN 50
DATA

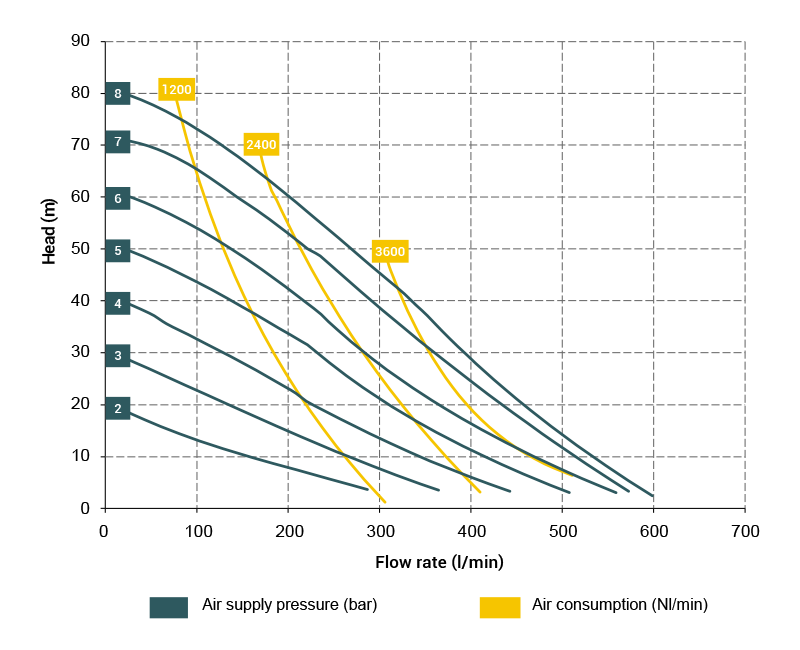

Performance
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials
** Attention: average values of the different materials configurations for ball and ball seat.
DATA
Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
| Suction/delivery connections | G 2″ f o DN 50 |
| Air fitting | G 1/2″ f |
| Max flow rate * | 600 l/min |
| Max supply air pressure | 8 bar |
| Max head * | 80 m |
| Max negative suction head – dry-running ** | 5 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter Max suspended solids | 8 mm |
| Noise level ** | 80 dB |
| Volume per stroke | 1825 cc |
PP PVDF PE
| Version | Weight | Min | Max |
| PP (with glass additive) | 38 kg | 3° C | 65° C |
| PP conductive (with carbon additive) | 34,5 kg | 3° C | 65° C |
| PVDF | 45 kg | 3° C | 95° C |
| PE | – | – | – |
| Maximum dimensions | Plastic |
| Height | 650 mm |
| Width | 590 mm |
| Depth | 404 mm |
Connections
A1 – A2 – A3 – A4 – M1 – M2 – M3 – M4
STANDARD CONNECTIONS
M1 – A1
SUCTION
A1 – A2 – A3 – A4 – A5 – A6
DELIVERY
M1 – M2 – M3 – M4 – M5 – M6
