AIR-OPERATED DOUBLE DIAPHRAGM PUMPS
Boxer 81 / 90
- Maximum flow rate: 110 l/min
- Suction / delivery connections: G 1″ f o DN 25

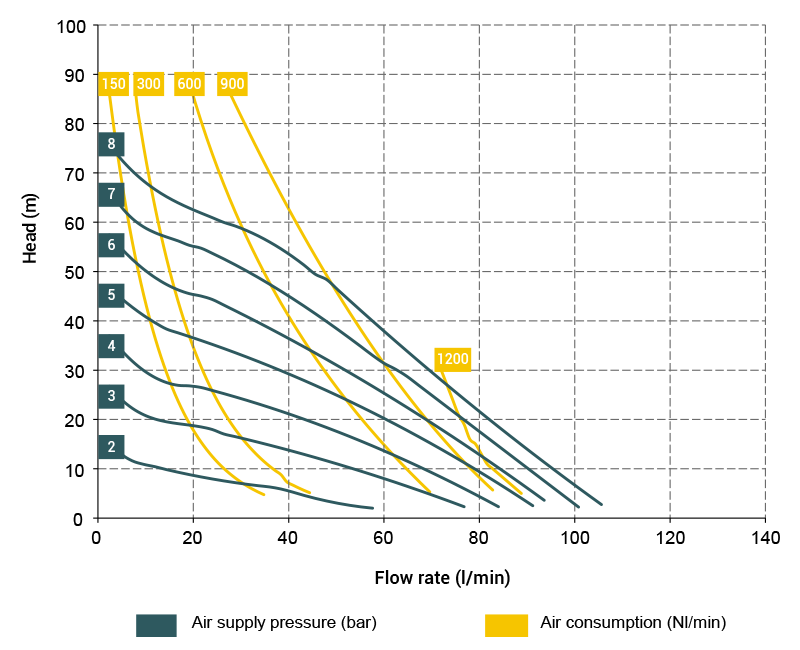

DATA
Performance
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials
** Attention: average values of the different materials configurations for ball and ball seat.
DATA
Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
| Suction/delivery connections | G 1″ f o DN 25 – Clamp o NPT available only on request |
| Air fitting | G 3/8″ f |
| Max flow rate * | 110 l/min |
| Max supply air pressure | 8 bar |
| Max head * | 80 m |
| Max negative suction head – dry-running ** | 4 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter Max suspended solids | 4 mm |
| Noise level ** | 70 dB |
| Volume per stroke | 100 cc |
Construction materials (casing and manifolds) available on request
– POMc
– UHMWPE
– Duplex/S.Duplex
PP PVDF AISI
| Version | Weight | Min | Max |
| PP (with glass additive) | 5 kg | 3° C | 65° C |
| PP conductive (with carbon additive) | 5 kg | 3° C | 65° C |
| PVDF (with carbon additive) | 6 kg | 3° C | 95° C |
| AISI 316 L ELECTROPOLISHED | 10,6 kg | 3° C | 95° C |
| Maximum dimensions | Plastic | Stainless Steel |
| Hight | 274 mm | 275 mm |
| Width | 308 mm | 305 mm |
| Depth | 170 mm | 170 mm |
DATA

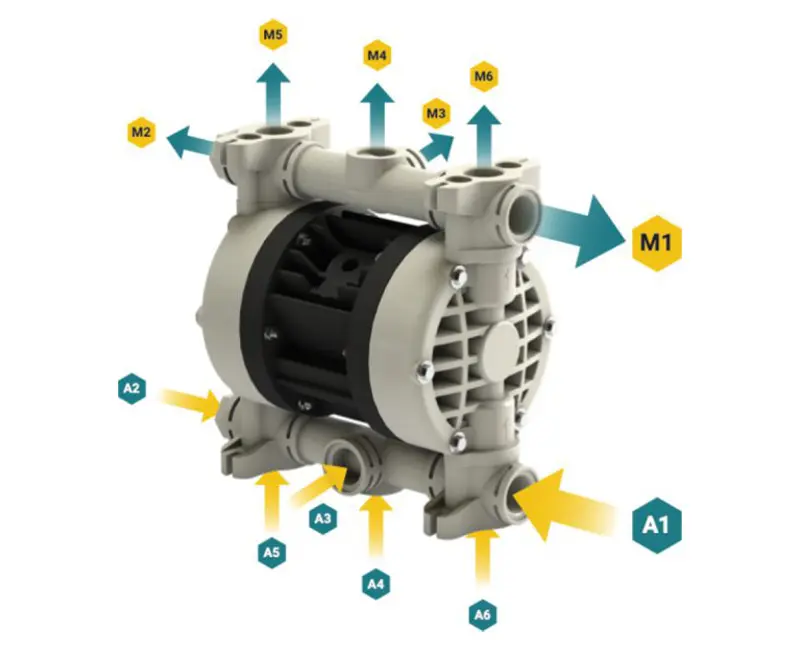

Connections
A1 – A2 – A3 – A4 – A5 – A6 – M1 – M2 – M3 – M4 – M5 – M6
A1 – A2 – A3 – M1 – M2 – M3
STANDARD CONNECTIONS
M1 – A1
SUCTION
A1 – A2 – A3 – A4 – A5 – A6
DELIVERY
M1 – M2 – M3 – M4 – M5 – M6
