External Gear Pump | Viscous Liquid Gear Pump

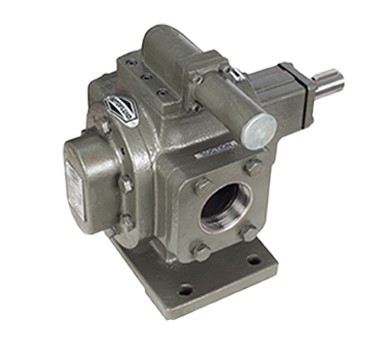

Fluid Tech Systems offer “ROTOFLUID” brand External Gear Pump Model “FTNX/FTBX” (Rotary Pump - Viscous Liquid Gear Pump) which is heavy duty flange and foot mounting type positive displacement rotary gear pump. Model “FTNX/FTBX” is modified version of Model “FTRN/FTRB” to achieve high pressure. These pumps having doubled helical finished gears and hardened & ground shafts. Due to double helical gear it prevent axial load and side thrust which help to increase life and performance of pump. Model “FTBX” is a bush bearing type pump which can be used for viscous liquid having sufficient lubricating value for intermittent duty; however for continuous duty pump have needle roller bearing in Model “FTNX” and it will be selected for liquid having low viscosity, power lubricating values.
In these pumps size ½" to 2" are provided with thread at end of suction &aamp; delivery and they are available with foot or flange mounting, But in size 2.5" to 4" are provided with flange at the end of suction & delivery and they are available with foot mounting only. These pumps can be operated up to pressure of 20 kg/cm² with 5.0 LPM to 900 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200°c.
External Gear Pump | Material of Construction
| Part | Material For FTNX | Material For FTBX |
| Pump Body | CI/CS | CI/CS |
| Front Cover | CI/CS | CI/CS |
| Back Cover | CI/CS | CI/CS |
| Gland Cover | CI/CS | CI/CS |
| Rotor/Stator Shaft | EN-19 | EN-19 |
| Gear | EN-24/EN-353 | EN-24/EN-353 |
| Needle/Bush Bearing | INA/IKO [Japan] | Non- Ferrous |
| Wear Plate | Non- Ferrous | Non- Ferrous |
| Sealing | “GFO” Pack Teflon / Mech. Seal | “GFO” Pack Teflon / Mech. Seal |
| R.V. Housing | Mild Steel | Mild Steel |
| R.V. Piston | EN – 8 | EN – 8 |
| R.V. Spring | Spring Steel | Spring Steel |
| R.V. AD. Screw | EN-8 | EN-8 |
| Key | EN-8 | EN-8 |
| Hex - Bolt | Mild Steel | Mild Steel |
External Gear Pump | Technical Specification
| Model FTNX/FTBX | Suction & Delivery Size | Capacity at 1440 RPM | ||
| LPM | US GPM | M³/hr | ||
| 050 - S | ½" x ½" | 05 | 1.3 | 0.3 |
| 050 - M | ½" x ½" | 8.3 | 2.2 | 0.5 |
| 050 - L | ½" x ½" | 16 | 04.4 | 1.0 |
| 100 - S | 1" x 1" | 25 | 06.6 | 1.5 |
| 100 - M | 1" x 1" | 33.3 | 08.8 | 2.0 |
| 100 - L | 1" x 1" | 41.6 | 11.0 | 2.5 |
| 125 - S | 1¼" x 1¼" | 50 | 13.2 | 3.0 |
| 125 - M | 1¼" x 1¼" | 60 | 16.6 | 3.6 |
| 125 - L | 1¼" x 1¼" | 83 | 22.0 | 5.0 |
| 150 - S | 1½" x 1½" | 100 | 26.5 | 6.0 |
| 150 - M | 1½" x 1½" | 125 | 33.0 | 7.5 |
| 150 - L | 1½" x 1½" | 150 | 39.7 | 9.0 |
| 200 - S | 2" x 2" | 166.6 | 44.1 | 10.0 |
| 200 - M | 2" x 2" | 200 | 53.0 | 12.0 |
| 200 - L | 2" x 2" | 250 | 66.2 | 15.0 |
| 250 - S | 2 ½" x 2 ½" | 300 | 79.5 | 18.0 |
| 250 - M | 2 ½" x 2 ½" | 333 | 83.3 | 20.0 |
| 250 - L | 2 ½" x 2 ½" | 350 | 92.7 | 21.0 |
| 300 - S | 3" x 3" | 400 | 106.0 | 24.0 |
| 300 - M | 3" x 3" | 450 | 119.0 | 27.0 |
| 300 - L | 3" x 3" | 600 | 159.0 | 36.0 |
| 400 - S | 4" x 4" | 700 | 185.5 | 42.0 |
| 400 - M | 4" x 4" | 800 | 212.0 | 48.0 |
| 400 - L | 4" x 4" | 900 | 238.5 | 54.0 |
External Gear Pump | Features
- High pressure pump offered to 20 Bar.
- Heavy duty gear pump design for continuous application.
- Modification tooth profile enhances the tool life.
- OptionallyInFloating gear design ensures uniform load distribution.
- Heavy duty gear pump double helical design prevent axial load and side thrust.
- Shorter bearing span reduces bending effect.
- Low leakage path by design improve volumetric efficiency.
External Gear Pump | Application
- Power plant.
- Steel plant.
- Cement plant.
- Bitumen plant.
- Petroleum industries.
- Refineries
- Pumping station.
- All kind of liquid loading and unloading.
