SLA Lobe Pumps range of rotary lobe pumps combines cost effective simplicity and easy maintenance with TMX quality and reliability.
SLA range has been developed for general applications within the Dairy, Beverage, Food, chemical and personal care industries.
Fully with CIP cleanable. This pump is also perfect for handling any liquid with low or high viscosity.
When it comes to filtration and bottling applications. Products containing brittle solids such as curd.
Thanks to specially designed lobes, it can be pumped without damage. Easy inspection or replacement without the need for pipework disassembly.

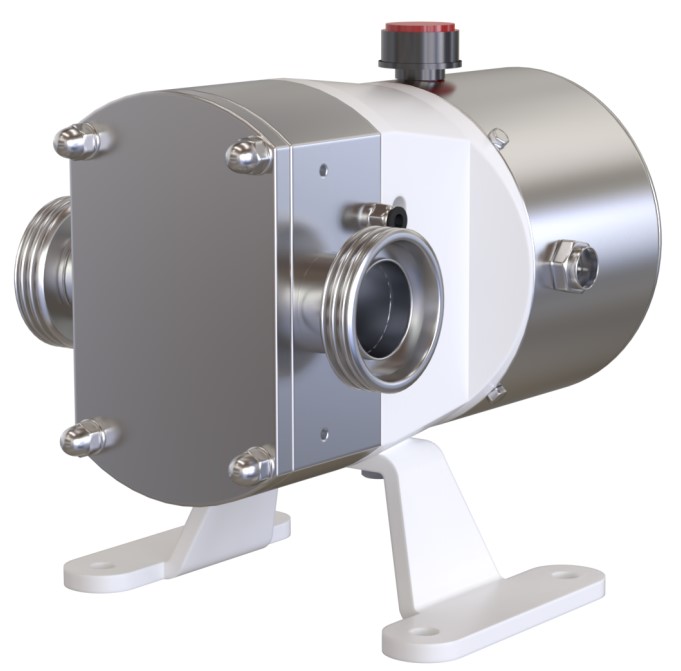

SLA pump is a bare shaft rotary lobe pump. It is made of a stainless steel.
Pump casing and cover, and two-lobe rotors with sanitary attachment.
SLA rotary lobe pumps is provided with an internal mechanical seal approved EHEDG. The seal is balanced and has a hygienic design. When required, other materials can be used.
SLA pump range is compact, efficient and capable of flow rates up to 122m3/h and pressures up to 12 bar.
TMXFLOW
Lobe Pump
Dairy

Cosmetic

Food

Pharmaceutical

Brewery

Syrups

SLA Lobe Pumps Application
User Benefits
- High efficiency
- Low energy consumption
- Compact size
- Smooth flow
- Reversible operation
- Low shear pumping
- Minimal pumped media agitation
- Easy maintenance
- Hygienic design
Operation

The positive displacement of the Series SLA pump is provided by non-contacting, contra-rotating two or tri-lobe rotors within a fully swept pump chamber.
Materials
Pump Head Housing: AISI 316L
Gaskets: EPDM or FPM
Gear Box: GG25
Shafts: Duplex Stainless Steel
Shaft Seal: Single,Double Mechanical Seal
Surface Finish: Ra<0,8 μm
Connections: DIN 11851, SMS, ISO, Clamp
Base Plate: Stainless Steel
Coupling Guard: Stainless Steel
Operating Limits
Maximum flow: 122 m3/h
Maximum differential pressure: 12 bar
Maximum working pressure: 12 bar
Temperature range (EPDM): -10 °C to +120 °C
Temperature CIP, max. 30 min: +140 °C
Maximum speed: 950 rpm


Models
The TMXFLOW Models
